Bowl Vibration Wedges

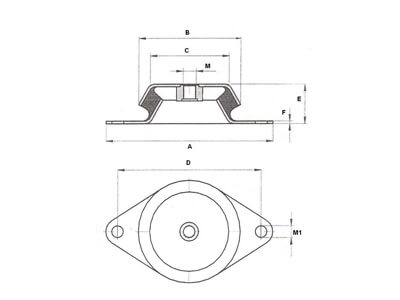

BOWL VIBRATION WEDGE
PRODUCT CODE |
A |
B |
C |
D |
E |
F |
M |
M1 |
ÇVT0 |
80 |
43 |
26 |
66 |
23 |
2 |
8 |
7 |
ÇVT1 |
94 |
56 |
28 |
77 |
29 |
2,5 |
8 |
9 |
ÇVT2 |
104 |
60 |
30 |
83 |
34 |
2,5 |
10 |
10,5 |
ÇVT3 |
129 |
72 |
55 |
110 |
30 |
2,5 |
10 |
10 |
ÇVT4 |
165 |
91 |
48 |
124 |
41 |
4 |
14 |
12 |
ÇVT6 |
205 |
120 |
65 |
158 |
60 |
5 | 10 |
16 |
ÖZKV3 |
129 |
72 |
55 |
110 |
30 |
2,5 |
60 |
10 |
| ÖZKV5 | 170 | 107 | 85 | 140 | 40 | 3 | 12 | 13 |
| ÖZKV6 | 162 | 150 | 103 | 187 | 50 | 4 | 16 | 13 |
| ÖZKV9 | 185 | 180 | 115 | 210 | 63 | 4 | 20 | 13 |

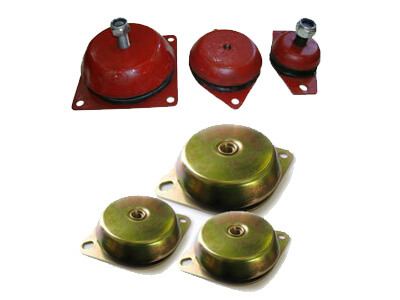

BOWL VIBRATION WEDGE
These wedges can be safely used in vertical position or in places with a maximum angle of 15º. It also eliminates horizontal vibrations due to its bowl type design.
